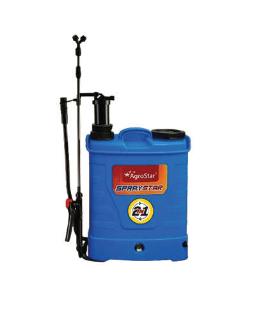

SprayStar Single Motor 12X10 (2IN1)
SprayStar Single Motor 12X10 (2IN1)
AgroStar SprayStar Single Motor 12X10
(2IN1)
A 16 L dual-mode farm sprayer with battery-powered
single-motor operation and a manual lever for use without battery power.
Two operating modes: Battery power or manual-lever operation.
Included accessories: Lance, nozzle set, cushion belt, hose pipe and trigger handle
(clutch).
Why Choose This Product? Key Benefits
-
🔄  Manual backup: The lever-operated mode
provides a spraying option when battery power is unavailable.
-
🔋  Powered spraying: Use battery mode to
reduce repeated hand pumping during the task.
-
🎒  Portable build: The virgin-plastic body
and cushioned carrying belt support handling around the farm.
-
🚿  Delivery attachments included: A lance,
nozzle set, hose and trigger handle are supplied for the spray setup.
Technical Specifications
| Parameter |
Details |
|---|---|
| Brand |
AgroStar |
| Equipment type |
Battery and manual-lever sprayer |
| Model |
SprayStar Single Motor 12X10 (2IN1) |
| Tank capacity |
16 L |
| Motor arrangement |
Single motor in battery mode |
| Stated motor-driven flow |
4 L/min; not a manual-mode or guaranteed nozzle-output rating |
| Battery voltage |
12 V |
| Body material |
Virgin plastic |
| Included accessories |
Lance, nozzle set, cushion belt, hose pipe and trigger handle (clutch) |
| Pack quantity |
1 unit |
| Product code |
AGS-HW-1723 |
How It Works: Dual-Mode Spraying
-
Choose battery or manual mode: Battery mode uses the single motor; manual mode uses the lever. Follow the supplied controls and
mode-change instructions.
-
Deliver liquid through the spray attachments: The hose, lance and nozzle direct the liquid, with the trigger handle controlling
delivery.
-
Check the selected mode: Check the spray pattern and working output in the mode being used. Do not assume that manual and battery
modes produce the same flow.
Suitable Uses & Operating Requirements
-
Work with a manual backup option: Suited to farm spraying tasks where both battery and hand-operated options are useful.
-
Match the liquid and nozzle: Use only spray products, attachments and methods suitable for the equipment and application task.
Model & Pack Selection Guide
| Selection Check |
What to Confirm |
|---|---|
| Exact version |
Choose the 2IN1 model, product code AGS-HW-1723, for battery-plus-manual operation. |
| Tank and carrying fit |
The tank holds 16 L. Check that the carrying arrangement suits the operator and filled working load. |
| Electrical match |
Select the exact compatible battery and approved charger, not a replacement based only on a 12 V marking. |
| Supplied attachments |
Check the lance, nozzle set, cushion belt, hose and trigger handle; confirm additional items separately. |
Setup & Care: Best Practices
-
Inspect before filling: Check the tank, hose, connections, nozzle and carrying straps for damage, blockage or leaks.
-
Select the spray setup: Fit the compatible lance and nozzle according to the sprayer’s instructions. Check the spray pattern and
actual output with clean water before using a spray product.
-
Measure the mixture separately: Follow the spray product’s crop, dose and water directions. Tank capacity and pump flow do not
provide a chemical mixing recipe.
-
Set up the carrying belt: Adjust the cushion belt for a secure fit before lifting the filled sprayer.
-
Clean and isolate safely: Switch off and release pressure before cleaning or changing parts. Follow both the sprayer and
spray-product cleaning directions; keep liquid away from electrical components.
Frequently Asked Questions
It means two operating modes: battery-powered spraying and manual-lever spraying.
Yes. The manual-lever mode provides that option. Follow the sprayer’s instructions for selecting and operating manual mode.
Do not treat it as a manual-mode rating. It is the stated motor flow; check actual output through the selected nozzle in the mode you use.
No. Use a charger approved for the exact battery and follow its instructions. Voltage alone is not a compatibility check.
Use the spray product’s crop-specific dose and water instructions and check actual sprayer delivery. The 16 L tank capacity is not a treatment recommendation.
Safety & Disclaimer
Before you use it: Read the sprayer, battery and charger instructions, and follow the label of any
product being sprayed. Use only equipment and liquids suitable for the intended task. This description does not replace the
supplied operating instructions.
Wear the protective clothing, gloves, footwear and eye or respiratory protection required by the spray
product. Keep spray away from people, animals and non-target plants. Keep children and bystanders away from the working
area.
Inspect the tank, hose, seals, controls and straps before use. Stop using equipment that leaks, has
damaged wiring or shows signs of overheating. Switch off and disconnect the charger from its power supply before inspection.
Have electrical or pump faults checked by a qualified service provider; do not improvise wiring or
repairs.
Use only a charger approved for the exact battery and follow its charging instructions. Keep the
charger and electrical connections dry and away from spray liquid. Do not use damaged batteries, leads or chargers, and do not
short the battery terminals.
Switch off and release pressure by the supplied instructions before removing a nozzle or opening
pressurised connections. Never blow through a nozzle with your mouth. Clean equipment as directed for the spray product,
collect residues and washings safely, and keep them out of drains and waterways. Store clean, dry equipment securely away from
children.
Product guidance: AgroStar product information.
